Sign Configuration

Please grab your ☕ and tight your seat before start this section.

Understanding scale

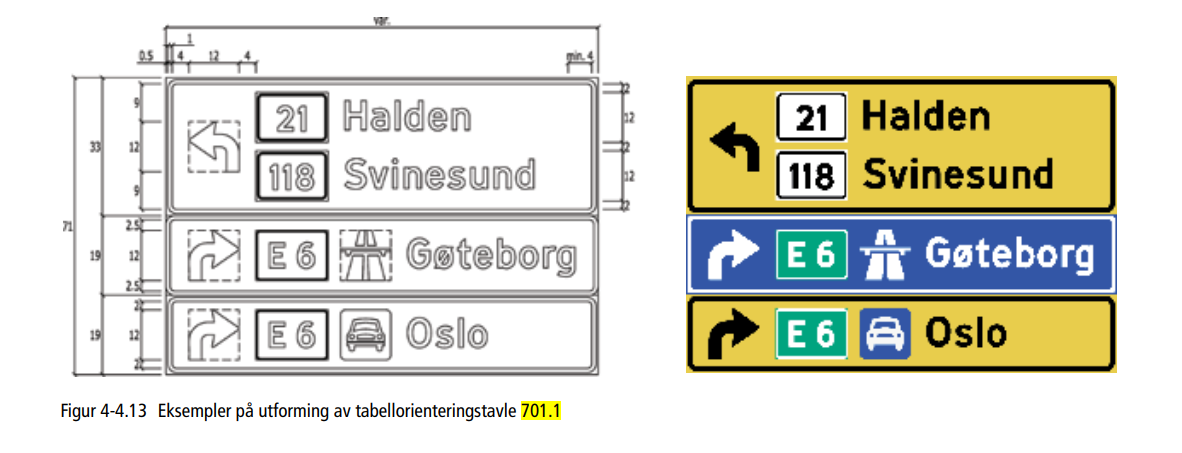

as you can see above that sign have a certain height value, there is also value that defining space between element. Based on image above we can have a summary:

• Total height of sign is 71
• Height of sign if they only have 1 line of position is 19
• Height of sign is 33 if they have multiple line of position
• Default height for each element is 12, except text is 7
• Space between element from left to right is 4
• If road-number and icon/symbol placed side by side distance between them is decreased to 3

Scale is a variable that is used as the basis of calculations to determine width and height when the sign is in the editor and when exported. Available in two different format pixel and mm. Remember that each rule that defined above is only work for Sub-sign 701.1, each sign is almost unique they will have their own rules for each element.

You can find the function that handle it below here.

/src/components/Helper/getCurrentScale.ts

export function getCurrentScale() {
    return { arrScales, arrScales5602, rectHeights, additionalHeights, svgHeight, realValue };
}

Element

Text

Height of the text element is 7, but set to 12 to automatically give space at the top and bottom of the text itself, the reason is we minimize the effort for positioning the element on the vertical way, but it will cost to inconsistent font size. Standard font size itself around 10.xx. Text element was made by Opentype.js with pre-defined config like font type, font size and fill color.

Road Number

The height of the road number element is fixed at 12, its width is dynamic and is based on how long the text is. The street number element has been created by joining several rect or path html elements with a text element. There is some style/variant for definition of base color and border style.

Symbol and Icon

The height of the road number element is fixed at 12, however their existence is limited to some type of sign. Symbol and Icon file will be uploaded by admin, so we don't need to create it from scratch.

Triangle Edge

Until this documentation was published only sign 713 and 729 that using this element. Each type of sign have different characteristic of the triangle element.

1. 729 have more simple configuration, it has different width for each font size, though that it only contains multiple path to create triangle from two perspective.
2. 713 have more complexity, it is because the triangle should have rounded edge in the middle of triangle point. Built from single complicated path and transformed into to some perspective view.

Dynamic Icon/Sign

We treat icons like signs which have dynamic values. This element is combined with other signs, combining 3 rules that comes from Text,Icon and Road Number.

Sign Plate

Height

Height of plate should following rules as documentation, if the height somehow doesn't exist in the list then it should rounded next to available plate height.

/src/components/Helper/getNearestPlate.ts

export function getNearest() {
  // ...
  return choosenPlate;
}

But there are certain rules that defined when plate height doesn't exist it should be rounded to previous plate height or force down into specified height

/src/components/Helper/excludedHeight.ts

export default function excludedHeight(fs: number, bh: number, type: string, h: number, isPlanPlate: boolean) {
  // ...
  return selectedHeight;
}

Width

Width of plate should rounded next to 100mm.

Render

This function will try to get current scale based on font size and distribute to Sign File that we create before

/src/components/SignViewer/SignViewer.tsx

export function elementsToRender() {
  //...

  let { scale, structure } = this.props;
  if (!isDownload) {
      scale = this.state.resolutionScale;
  }

  const scales: Scale = this.handleChangeScale(scale, isDownload!, !!isMeasure);
  const lines = this.adjustStructure(structure);
  const { newScale, newScales } = scales;

  let sign: ISignRender;
  if (signSubTypeNum) {
    sign = renderSignTemplate.signSign_Type(newScale, lines, icons, bg, !!isDownload, !!isMeasure, this);
  }

  //...

  const { renderSvgs, renderSvgMs, highestRectWidth, totalBaseHeight, baseHeights } = sign;

  this.setState({
    renderSvg: renderSvgs,
    renderSvgM: renderSvgMs,
    rectWidth: highestRectWidth,
    baseHeight: totalBaseHeight,
    baseHeights: baseHeights,
    realScales: newScale,
  });
}

Example

If we choose a 701.1 sign based this image with font size = 175 then value that we defined for each sign should be:

1. Height is [33, 19, 19] * 25 = 1805mm.

• 33 * 25mm = 825mm Plate Height 825 is not exist so it should be rounded next to 855
• 19 * 25mm = 475mm
• 19 * 25mm = 475mm

2. Width is dynamic value but it should be highestWidth * 25mm = Xmm the result should be rounded next to 100mm.
3. Default Scale is 94.48 if plate height is adjusted then we have new scale of height.

Miscellaneous

1. All sign except 729 have extra 10mm width on left-right, for the calculation already implemented on each sign file.
