Preview and Testing

Preview

Editor

State that generated from elementsToRender function is where our preview is created. Returning function at src/components/SignViewer/SignViewer.tsx act as preview in our editor, it also handle:

• Multiple preview when sign is saved/updated/exported.
• State renderSvgs which hold all html for each element will be combined with default SVG html.
• Created base plate rect with other rect as element that hold stroke/border.
• Generated a measurement for each of sign to visualize how height and width sign will be and generate extra small text as description.

src/components/SignViewer/SignViewer.tsx

  return(
    <svg>
      <rect />                      {/* Base Plate */}
      <rect />                      {/* Base Plate Border */}
      {this.state.renderSvgs}       {/* Render Element */}
      {renderTextSign}              {/* Render Small Text */}
      <div />                       {/* Width Top Measurement */}
      <div />                       {/* Total Height Left Measurement */}
      <div />                       {/* Height of Plate Right Measurement */}

      <SvgOutputDownload />         {/* Sign only For Export */}
      <SvgMeasurement />            {/* Sign with Measurement */}
    </svg>
  )

Testing

You can easily analyze whether the Sign is correct or not by looking at the editor results. You can compare with the preview from each of sign documentation. You can see often that some of element are overlapping, element size is different, elements cannot be seen or any miss view. Mostly it came from our initial value or result of calculation for some position is not correct, you can refer to each sign file that located src/components/SignViewer/renderSignTemplate/sign_type.tsx. Steps that you can check:

1. Check whether base height, plate height, scale are correct.
2. Check initial X and Y position for each element (setting up breakpoints and start debugging).

if the results of all stages above are correct you can try to export it by clicking Export Pdf in left sidebar, but before that you must install CorelDRAW so that you can see the export results.

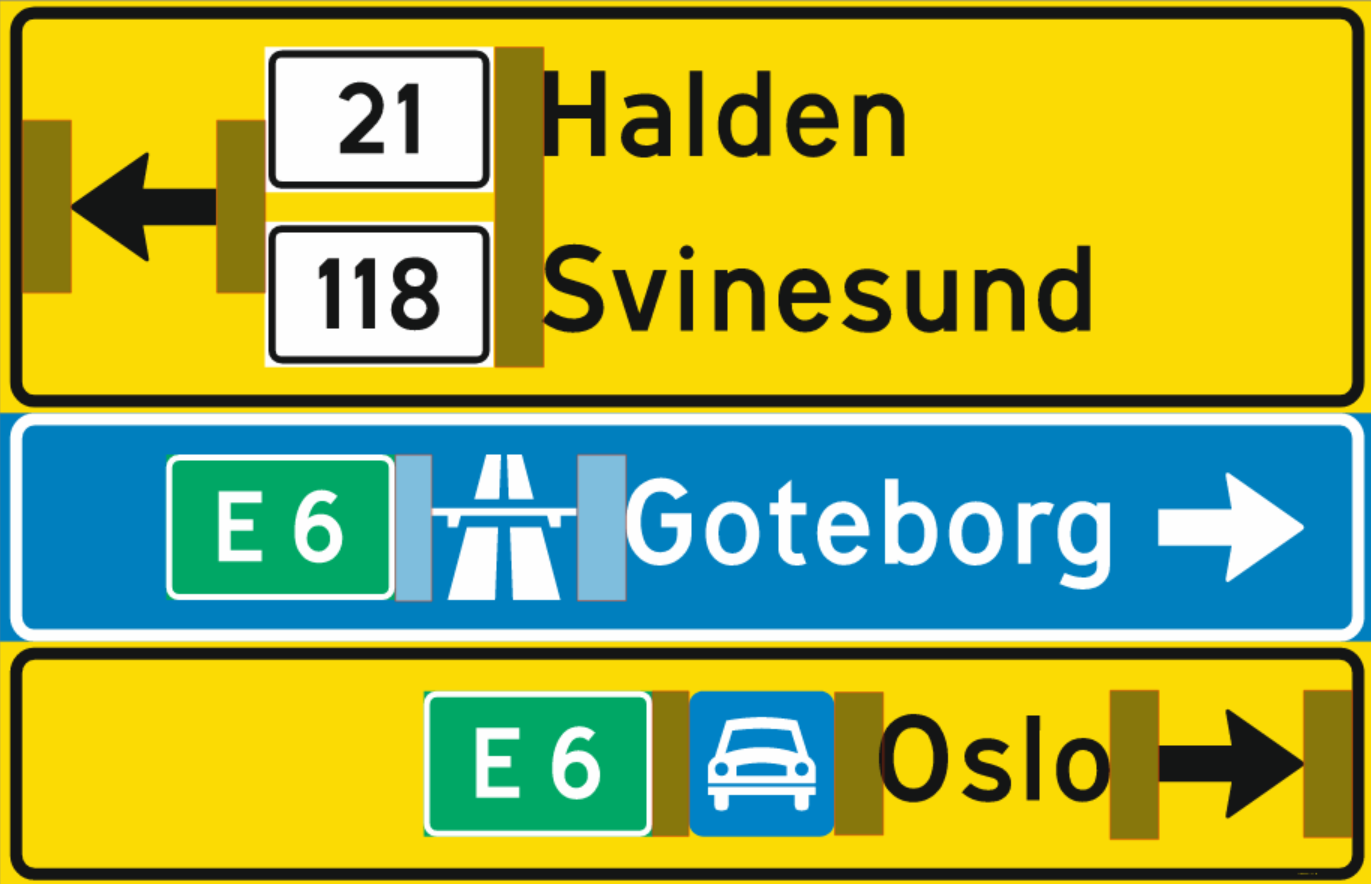

Preview Exported Sign

This is example when we export sign and open it in CorelDRAW, to ensure that the sign has been successfully created and in accordance with the documentation, we can create a box by multiply scale with width. You can measure space between element both vertical/horizontal just make sure that you choose the right scale, scale also can't be seen in default list if somehow we rounded plate height to the next one.

You can export again and measure until the sign is in accordance with the rules that have been made.
